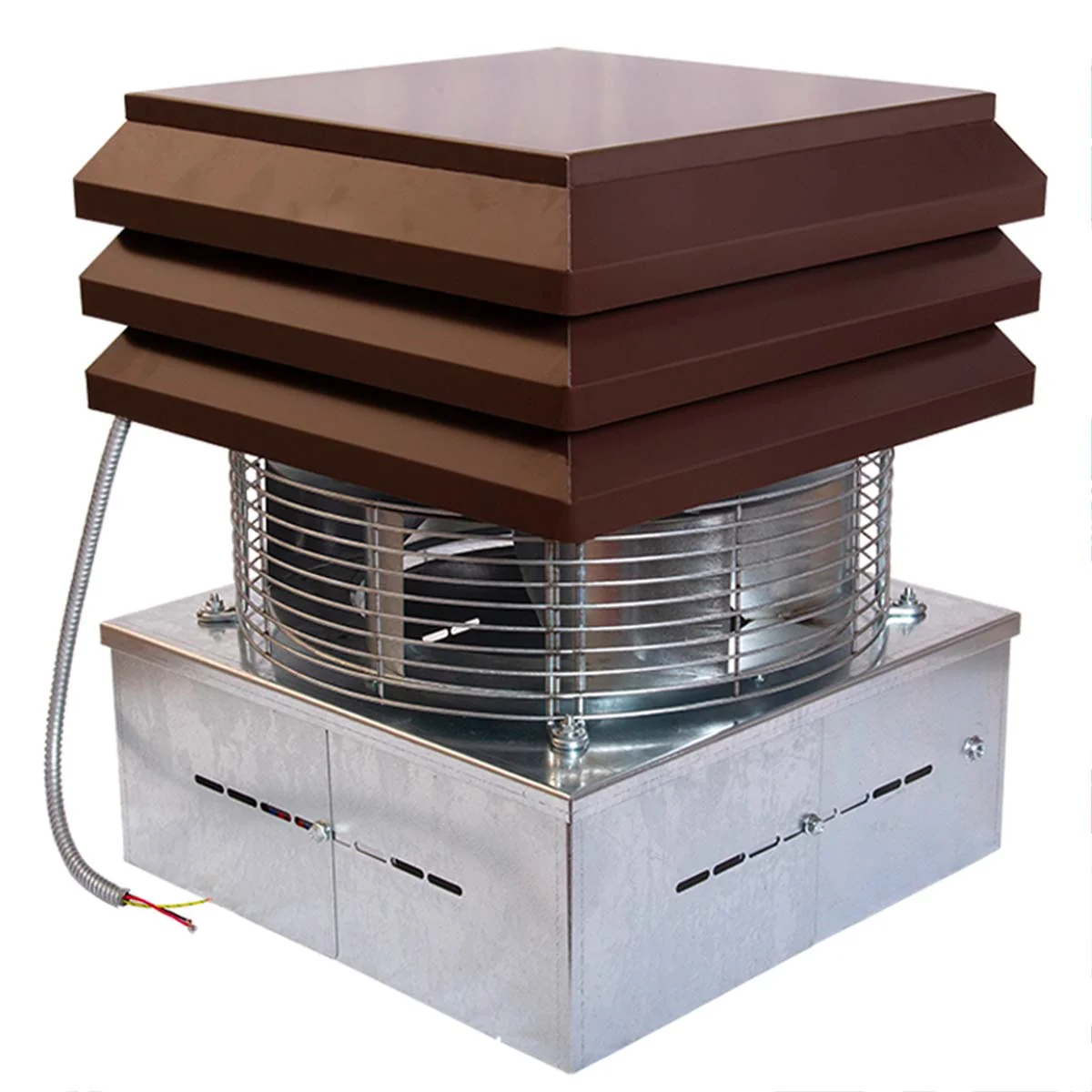

Base model square Chimney fan
The basic model chimney fan is a smoke extractor that removes smoke from chimneys, stoves, barbecues, ovens and more.
Also called an electric smoke extractor or chimney sweep, it is equipped with a 6-speed regulator that will make the draught in your chimney perfect....
- Resistant up to 300°.
- 3 year warranty
- Up to 2500 m³/h (equipped with 6-speed controller)
- Since 1983, designed and built in Italy
- TUV, IQNET and CE certified product
415,90 A$
Tax included
You save 415,90
A$
Estimated delivery between:
Tuesday 23 June and Thursday 25 June
Calculated at checkout
Free returns 100 days
Payment methods
CHIMNEY FAN
GEMI ELETTRONICA
Basic model
Universal.
A product
for a thousand uses.
The Gemi smoke detector is ideal for:
Fireplaces, heating fireplaces, stoves,
Ovens, Rotisseries, Pizzerias,
Barbecues, Kitchen hoods,
Restaurant
Unique.
20 reasons
for choosing it.
The solution to the problem
of your chimney smoke
is Gemi Elettronica!
Simple.
Mount it? A
child's play.
If you are wondering how
how to mount it, we have the
answer for you...
Also round.
We adapt
us to you.
Is your chimney round?
No problem, your
model can be found here:
Attention to detail.
Grid
protection grid.
Robust anti-volatile
(compliant with UNI ISO 13857)
made of rings of
electro-haled steel.
For your measurements ...
Bracket kit
adjustable.
For any chimney
square or rectangular
from 20x20 cm up to 43x43 cm
...always a solution.
And also chimneys,
flues of 43 cm.
In this case you can mount
directly on the flue
with 4 Fischer screws placed on the 4 sides
of the lower bracket of the smoke extractor.
A force of nature.
Powerful
up to 2500 m³/h
We will solve your problem.
Rest assured.
Differences between
Gemi models?
BASE
PRO
STEEL
COPPERYEARS OF GUARANTEE
3
6
8
10
SUCTION POWER
(x1000 M³/H)
2.5
3.8
3.8
3.8
RESISTANT UP TO...
300
700
700
700
CLASS H MOTOR FOR HIGH TEMPERATURES
EXTERNALLY PROTECTED WIRED CLAMP
EXTERNAL STRUCTURE IN AISI 304 STAINLESS STEEL
AISI 304 STAINLESS STEEL FAN
HIGH RESISTANCE TO CORROSION
REAL COPPER PLATED CHIMNEY FAN
Secure and certified.
Since 1983,
attention to
your safety.
We have always invested in
research, innovation and security.
Thanks to this vision, we have
obtained all the best
certifications worldwide.
Dimensions
Electricity diagram
What do our customers say?
The most loved in the world.
Our
customers say so.
The first in the world in its
category thanks to
thousands of positive reviews
from all over the world on TrustPilot.
Our video reviews.
Discover the opinion of
who has tried it.
Hundreds of videos received
by customers just like you.
Why install a Gemi smoke extractor?
- Resolving the smoking problem100 % guaranteed.
- It does not suck in the heat,but only the smoke from your chimney.
- Very silent,even at high speeds.
- Low electricity consumption,maximum 10 € per year consumption.
- Easy to install even DO-IT-YOURSELF(follow the video tutorial).
- Universal,for all flues (including round ones).
- Reduces by 70%the accumulation of soot in the chimney.
- Can also be used in summerfor natural air exchange.
- Equipped with 6-speed regulator.
- Does not require maintenanceover the years.
- Even when switched off, it does not obstruct the normal release of smoke.
- Can be used as as a blower for the initial lighting of the chimney.
- When cleaning the chimney ashit avoids dispersion of the ash into the environment.
- It totally eliminates the inhalation of carcinogenic smokes escaping from the chimney.
- Product return rate is 0.05 % (5/10000)
- 100% MADE IN ITALY:patented by our company in 1983, it is still produced in Italy nowadays.
Shipping times and costs?
We deliver all over thethe world in 3/8 days
working days.
Find out all times and costs here:
How can I pay?
More than 10 methods
of payment.
Does the chimney fan have a guarantee?
3 Years
guarantee.
On any component
of the chimney fan
(electrical part or structure).
100 days to reconsider.
Satisfied
or refunded.
We will not need
any explanation.
We will collect the product at our expense
and you will get your refund
Why buy
an aspirator?
Other
trademarks
Certified product
Technical values verified by Unibas University
Suction capacity of 2500 M³/h
6-speed regulator (autotransformer)
Manufactured since 1983
3-year warranty
Free return for 100 days
Factory price (without intermediaries)
Verified reviews on Trustpilot
The advantages of buying from the
factory.
Free advice until resolution of the
of the problem.
You will be answered on the phone by our
specialised technicians with years of
experience in the field.
Call now at (+39) 02.87165556
or write to:[email protected]
2) Do you have a problem with one of our products?
We will immediately replace the product
3) Factory prices. Save
by not buying from resellers.
4) 40 years of experience in the industry
at your service.
5) Designed and entirely manufactured
in Italyin our production facility
of over 10,000 square metres
Product information
| Product code | A1 |
|---|---|
| EAN13 | 8012004024793 |
| Manufacturer | Gemi Elettronica |
| Condition | New |
| Availability | Available (10760 pcs) |
Download
Datenblatt / ID 36 - DE
8.4 MB
Download
Ficha de Datos / ID 36 - ES
8.4 MB
Download
Ficha técnica / ID 36 - PT
8.4 MB
Download
Fiche technique / ID 36 - FR
8.4 MB
Download
Fișă tehnică / ID 36 - RO
8.4 MB
Download
Technical sheet / ID 36 - EN
8.4 MB
Download
Technische fiche / ID 36 - NL
8.4 MB
Download
Tehnički list / ID 36 - HR
8.5 MB
Download
Teknisk blad / ID 36 - NO
8.4 MB
Download
Τεχνικό φύλλο / ID 36 - ΓΡ
8.4 MB
Download
Technical specifications
| Weight | 18.000000 kg |
|---|---|
| Dimensions (W x H x D) | 40.000000 x 40.000000 x 40.000000 cm |
| Reference | A1 |
Questions and Answers
The basic model has a suction capacity of 2500 m³/h, a 3-year warranty and can withstand up to 300 degrees.
The professional model can withstand up to 700 degrees (therefore also in case of a chimney fire) and is recommended if you have a chimney of less than 3 meters. It also has a 6-year warranty and sucks in 3800 m³/h.
The steel model is built entirely in Aisi 304 stainless steel, a material that ensures greater resistance to corrosion and saltiness and therefore over time. It has a suction power of 3800m³/h and a resistance of up to 700°, guaranteed for 8 years.
The top of the range offered by Gemi is the professional copper model, resistant up to 700°, with a 10-year warranty and capable of sucking up 3800 m³/h. The stainless steel fan resists corrosion and saltiness. It is fully painted on the outside (including the base) and is therefore suitable for those looking for a more aesthetically pleasing product.
Our electric smoke extractor has a 6-speed regulator, so you only need to set it to speeds of 1-2 to help extract smoke naturally, but not heat.
Basically, at the first two speeds, we are not altering in any way the normal operation of a fireplace, which would normally disperse a very small amount of heat in the smoke rising in the flue pipe. The Gemi chimney fan sucks up the smoke that would otherwise go into the house and therefore, certainly, would not produce any heat sources for the indoor environment.
It is clear that if the chimney fan does not operate at the sixth speed (usually at this speed it is used to change the air in rooms, to help start fires or to suck up the ashes), with its 2500m³/h(basic) - 3800m³/h(pro) it will be so powerful that it will also suck up the heat, because it will increase the speed of combustion of the wood and consequently partially reduce the heat. Scientific studies have shown that the Gemi smoke extractor can control heat loss, so it is advisable to use a chimney to prevent heat loss.
This can be seen in the millions of satisfied customers all over the world since 1983, when the first Gemi chimney fan was created.
The base of the electric chimney fan is standard 43x43 cm, the height is 35 cm, without the brackets. Considering the brackets it is 50 cm. For more specific measurements, a diagram showing the measurements of each individual part of the electric fireplace extractor fan is available on our website.
The function of the smoke extractor is to regulate the draught of the chimney, in order to solve the problem of smoke in the chimney, oven, stove, barbecue and to reproduce the natural draught of the chimney.
The assembly of the chimney smoke extractor is do-it-yourself. Watch the tutorial video on the product sheets to assembly the chimney fan.
If you encounter problems with the installation of the extractor fan, you can ask for the help of an electrician or a bricklayer.
If you have any doubts about the installation of the product (e.g. connection of wires, speed regulator, etc.) our specialist technicians will be at your disposal via email, chat or telephone.
If you have a square chimney with a pipe of the same height as the masonry, you must first close the gap between the pipe and the masonry and then install the chimney fan directly on the masonry. Similarly, if the pipe is only a few centimeters (or inches) high, the pipe must be brought to the same height as the masonry.
In this situation you have to buy the model of chimney fan with square base, adjustable also for rectangular chimney.
It is possible, but you have to consider the dimensions of the chimney fan. The installation of the smoke exhauster can be done in two ways: eliminating the cap of the chimney and then installing the chimney fan, or inserting inside the chimney the chimney smoke extractor, ordering in this case the smoke extractor without the cap.
Yes, it is possible. There are two ways to make the electrical connection: with the 3 x 1.5 cable (to be run outside the chimney up to the speed regulator) in order to extend the first metre attached to the chimney fan.
Or you can make an internal connection to the chimney with our high-temperature resistant cable, which you can purchase separately by selecting the desired quantity in the drop-down menu according to how many meters you need.
There is no time limit. The chimney smoke extractor can work all day without any problem.
The professional fan for fireplaces can be installed at any height, even on flues of 1 meter. On the other hand, the basic model of the chimney fan is recommended for chimneys over 3 m high.
